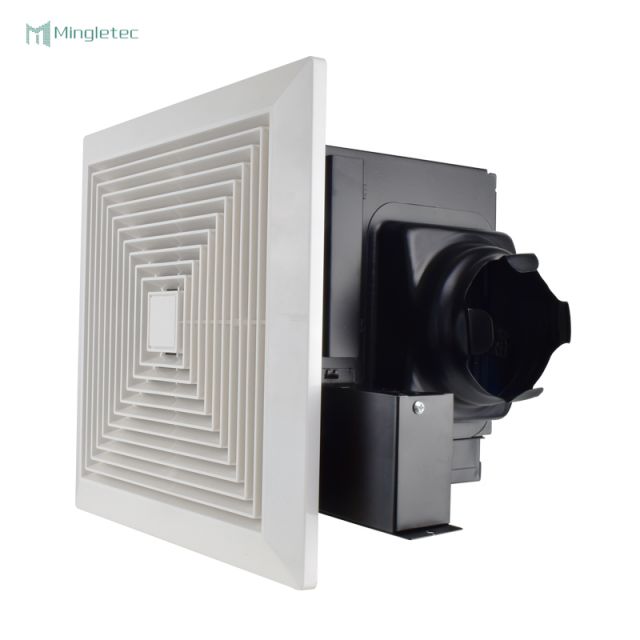

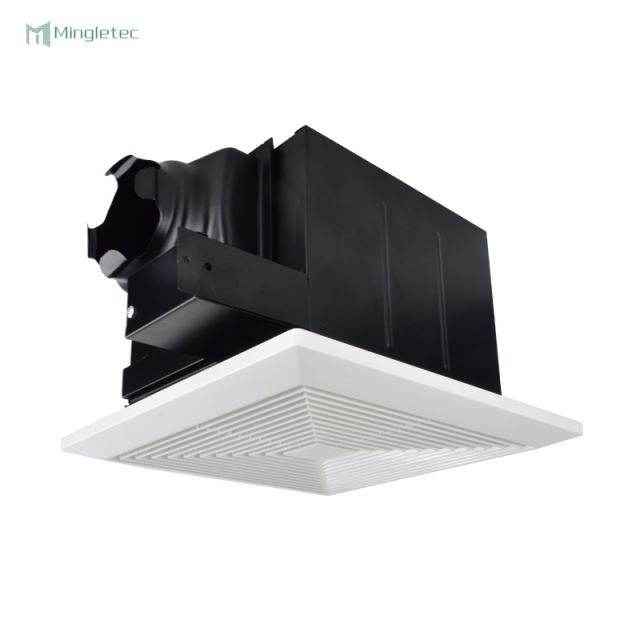

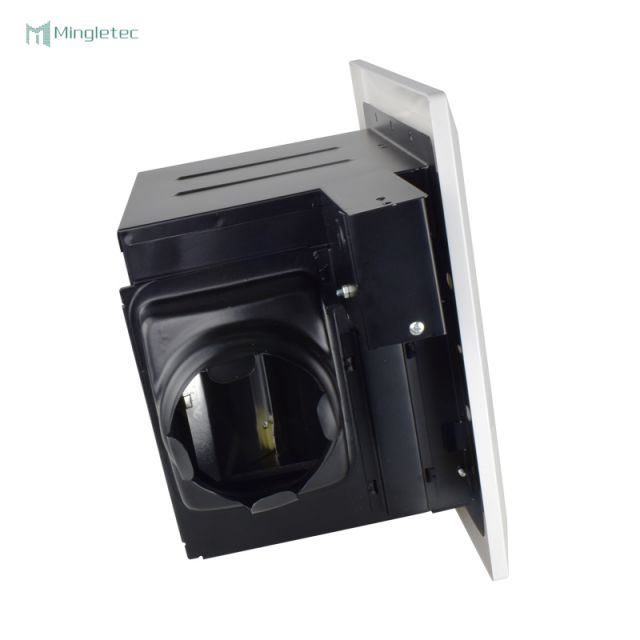

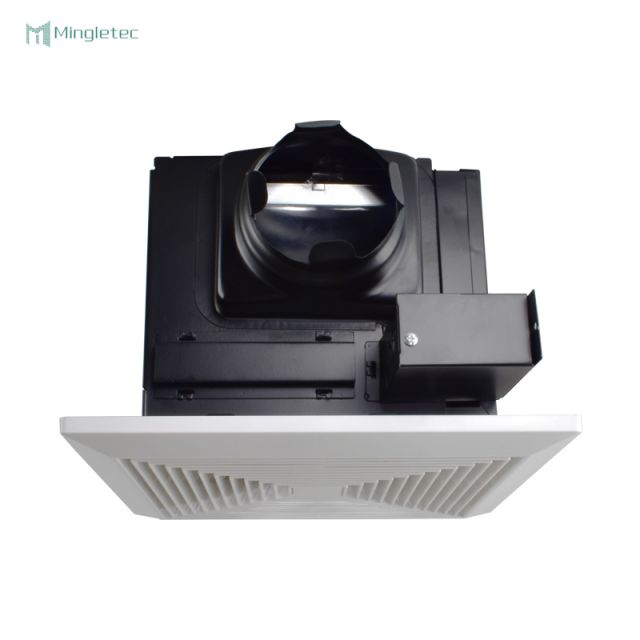

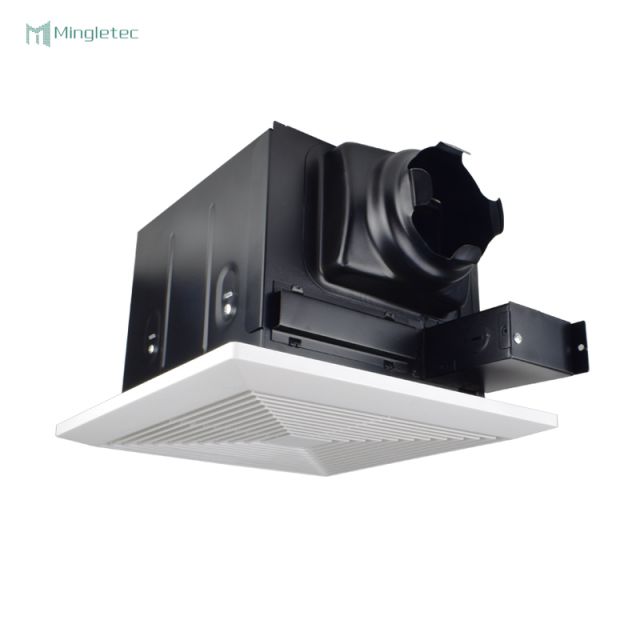

MFP-50/ 70/ 90/ 110
Mingletec
Product Features:
★ North america classical clip bled grill design, fashionable, simple, with an elegant appearance.
★Enclosed housing is fabricated from high quality metal plates with powder coating surfae treatment, corrosion resistance and rust prevention.
★Long life ball bearing motor.
★Quiet and excellent airflow.
★50CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 45-60 square feet, so your vision will always be clear and your surroundings will always be comfortable.
★If fans with light, when fans on, it can offer quiet, energy efficient ventilation with elegant lighting.
Model | Size | Voltage (V/Hz) | Power (W) | Speed (RPM) | Noise (dB) | Air Volume (m³/h) | Pressure (Pa) | Weight (Kg) |
MFP-50 | 4'' | 220/50 | 12 | 1300 | 42 | 85 | 65 | 3.7 |
MFP-70 | 4'' | 220/50 | 19 | 1300 | 45 | 120 | 83 | 3.8 |
MFP-90 | 4'' | 220/50 | 24 | 1300 | 46 | 155 | 108 | 3.9 |
MFP-110 | 4'' | 220/50 | 30 | 1300 | 48 | 190 | 135 | 4.0 |

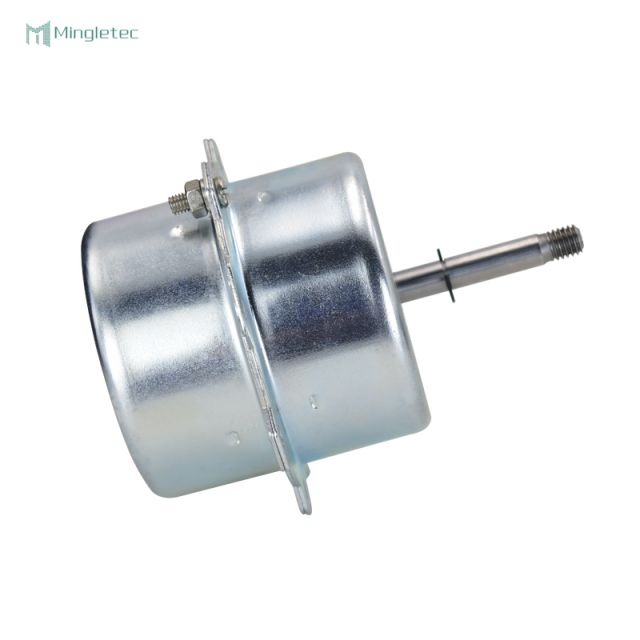

High Efficiency and Energy Saving Motor
Full copper core high energy efficiency motor, equipped with double ball bearings, reducing energy consumption, reducing friction noise of motor shaft operation, energy saving and environmental protection.

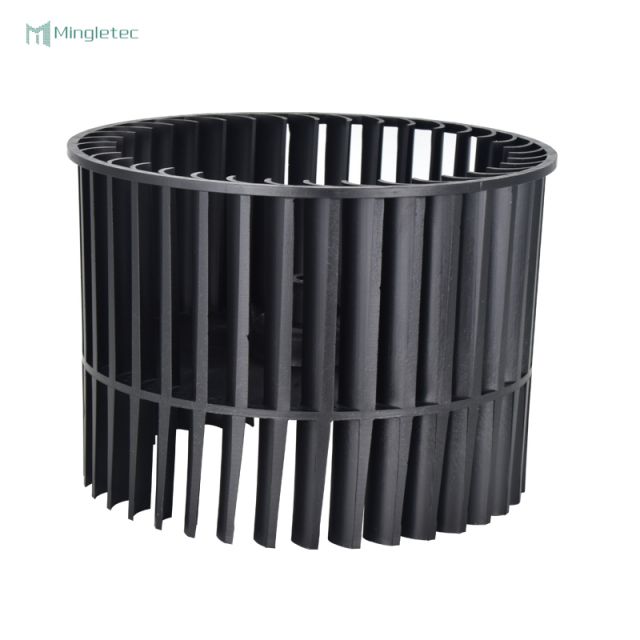

Two - way Flat wind Wheel
High performance centrifugal wind wheel, with large blade angle and width, to achieve the high silence, large air volume.
Stable rotation speed, small resistance, smooth air supply, the fan blade controls the turbulent flow generated around the blade fan, to achieve the overall strong and smooth air supply.

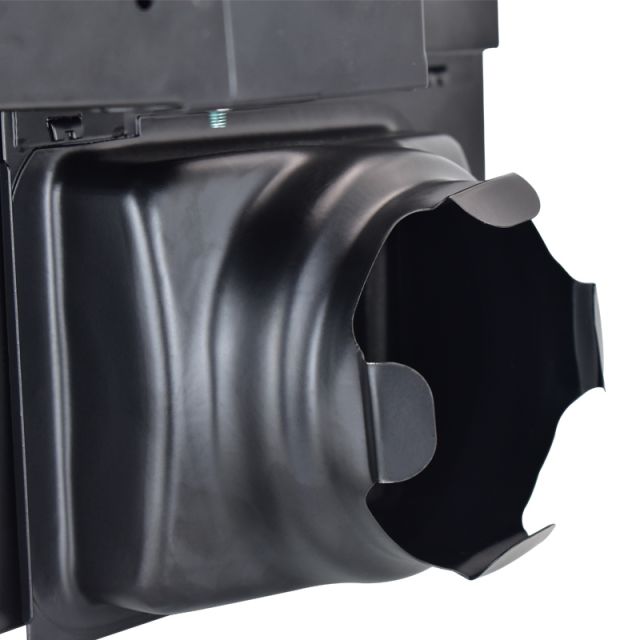

4inch Air Outlet
Equipped with anti-reverse flow gravity wind deflector, take over the large air outlet, smooth air outlet and improve ventilation
efficiency.

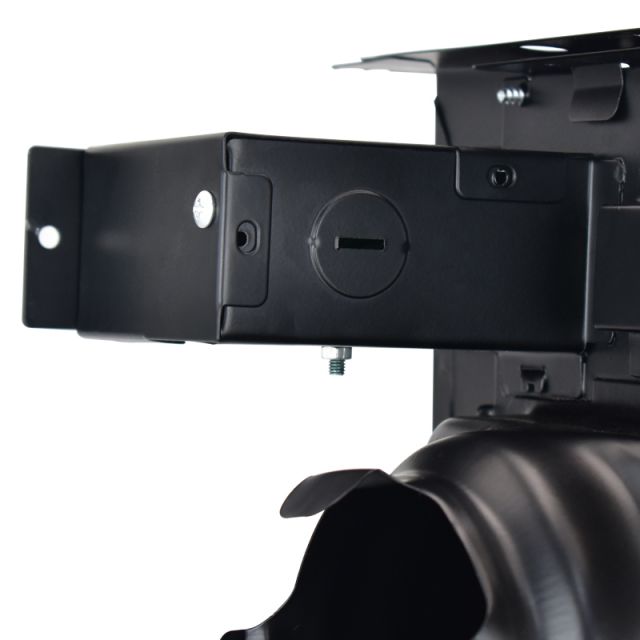

Junction box cover
Connect house wires to ventilation fan wires easier and safer.

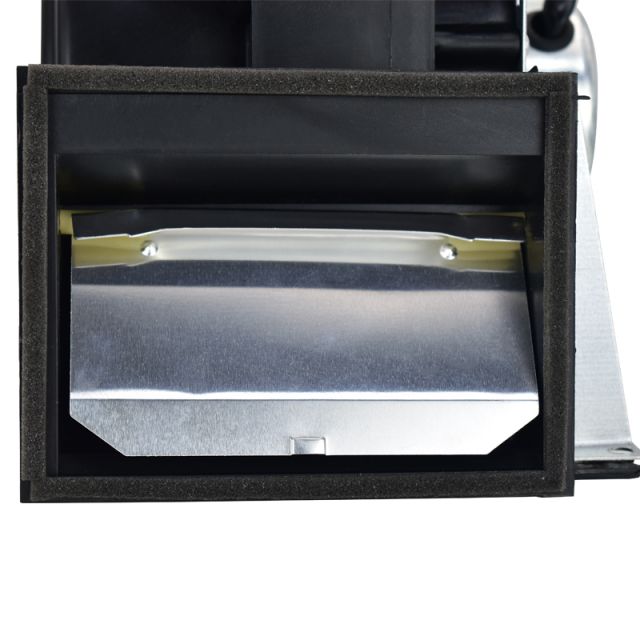

Check Valve Design
Equipped with the check valve, preventing odor and mosquitoes, dust and rain entering.

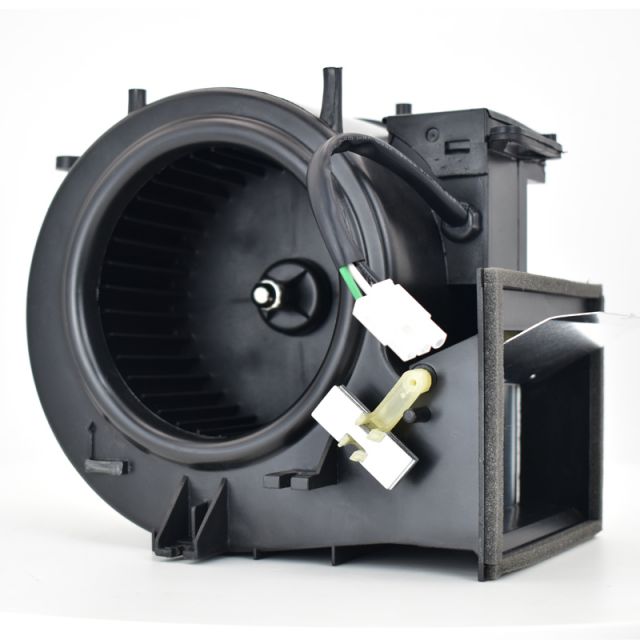

Independent volute
New double cover design, achieving muteness, effectively isolating the noise generated by the operation fan blade.

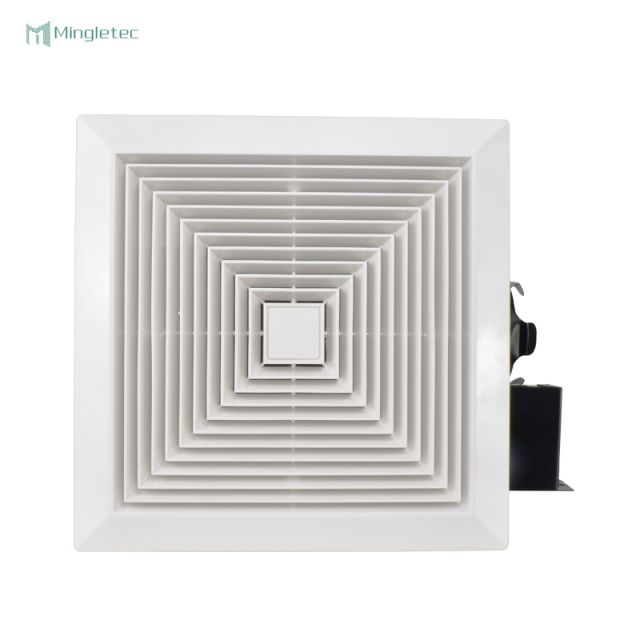

ABS white panel
ABS white panel, delicate design, oil and corrosion resistant, better choice for home use.
Low resonance coefficient, safe, quiet and durable.

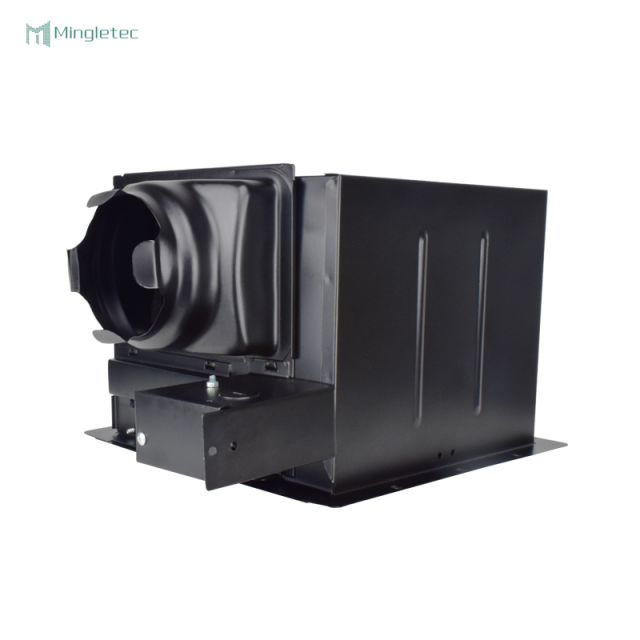

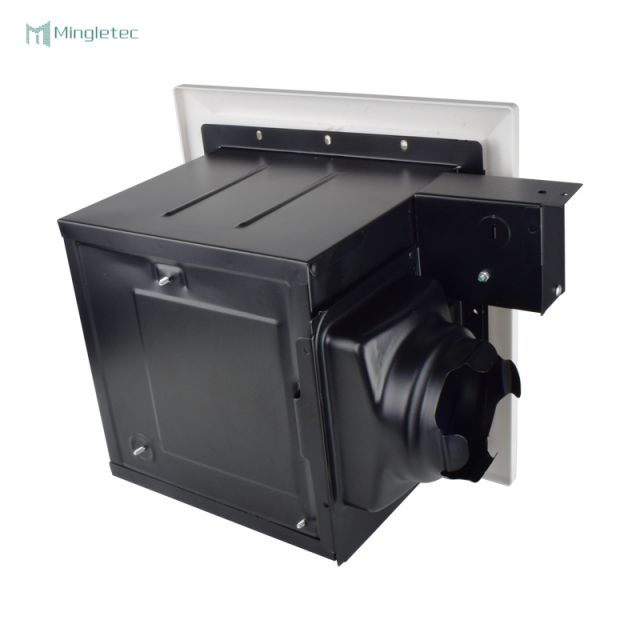

Metal housing
For high quality steel board, black electrophoretic spraying surface treatment which is sturdy and durable.
Product Features:
★ North america classical clip bled grill design, fashionable, simple, with an elegant appearance.
★Enclosed housing is fabricated from high quality metal plates with powder coating surfae treatment, corrosion resistance and rust prevention.
★Long life ball bearing motor.
★Quiet and excellent airflow.
★50CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 45-60 square feet, so your vision will always be clear and your surroundings will always be comfortable.
★If fans with light, when fans on, it can offer quiet, energy efficient ventilation with elegant lighting.
Model | Size | Voltage (V/Hz) | Power (W) | Speed (RPM) | Noise (dB) | Air Volume (m³/h) | Pressure (Pa) | Weight (Kg) |
MFP-50 | 4'' | 220/50 | 12 | 1300 | 42 | 85 | 65 | 3.7 |
MFP-70 | 4'' | 220/50 | 19 | 1300 | 45 | 120 | 83 | 3.8 |
MFP-90 | 4'' | 220/50 | 24 | 1300 | 46 | 155 | 108 | 3.9 |
MFP-110 | 4'' | 220/50 | 30 | 1300 | 48 | 190 | 135 | 4.0 |
High Efficiency and Energy Saving Motor
Full copper core high energy efficiency motor, equipped with double ball bearings, reducing energy consumption, reducing friction noise of motor shaft operation, energy saving and environmental protection.
Two - way Flat wind Wheel
High performance centrifugal wind wheel, with large blade angle and width, to achieve the high silence, large air volume.
Stable rotation speed, small resistance, smooth air supply, the fan blade controls the turbulent flow generated around the blade fan, to achieve the overall strong and smooth air supply.
4inch Air Outlet
Equipped with anti-reverse flow gravity wind deflector, take over the large air outlet, smooth air outlet and improve ventilation
efficiency.
Junction box cover
Connect house wires to ventilation fan wires easier and safer.
Check Valve Design
Equipped with the check valve, preventing odor and mosquitoes, dust and rain entering.
Independent volute
New double cover design, achieving muteness, effectively isolating the noise generated by the operation fan blade.
ABS white panel
ABS white panel, delicate design, oil and corrosion resistant, better choice for home use.
Low resonance coefficient, safe, quiet and durable.
Metal housing
For high quality steel board, black electrophoretic spraying surface treatment which is sturdy and durable.
