Product Feature And Working Principle Of Mist Fan

Views: 0     Author: Mingletec     Publish Time: 2023-01-18      Origin: Mingletec

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In the summer, the most popular thing is the air conditioner to cool down and relieve the heat. In fact, in addition to the air conditioner, there is also a very good product for relieving the heat--the spray mist fan. Many people may not know much about mist fans, let's take a look at the characteristics and working principles of mist fans with Mingletec.



Product feature of spray mist fan

Mist fan: The system of the mist fan is different from the general fan system. Its system is an outdoor refrigeration system or an indoor refrigeration system.

Features of the spray fan: it can be moved at will, and its fan blades use centrifugal technology instead of high-pressure technology. But unlike ordinary sprays, it has no nozzle, so there is no need to worry about the filter system or nozzle clogging and dirty problems. It can suppress dust and adjust the atmosphere. Like ordinary fans, there are three gears to adjust the wind speed, and you can adjust oscillating, and the amount of water mist can also be adjusted randomly. It is the environment that becomes fresh, cool and comfortable. In fact, the working principle of the face steamer is the same, so the sprayed mist is good for the skin.



Working principle

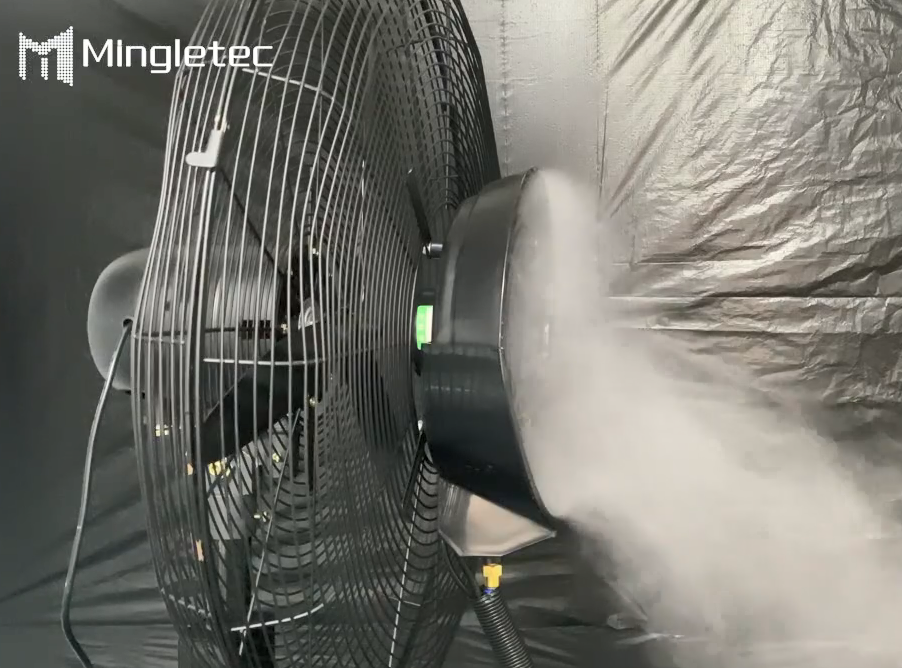

  • Centrifugal spray mist fan

When the water is under the action of the rotating machine and the mist spraying device, ultra-fine mist droplets will be generated due to the centrifugal force, which also greatly increases the evaporation area of the water. When the mist passes through the airflow blown by the powerful fan, the wind speed on the surface of the liquid is increased, and the diffusion of water vapor is also accelerated, thereby producing a spray.


  • High pressure nozzle spray mist fan

Under the pressure of the high-pressure water pump, the water bears the pressure of tens of kilograms, so the misting is generated through the high-pressure nozzle chamber, which also increases the evaporation area of the water. While passing the airflow blown by the powerful fan, the misting also greatly increases the wind speed on the water surface and accelerates the diffusion of gas, so the evaporation of water is accelerated, and the water absorbs heat in the evaporative type, which also accelerates the temperature change. It also makes the dry air relatively humid, reduces dust, and purifies the air.


Mingletec has two styles of misting fans, AC type and DC type.

The AC type is equipped with a 100% copper wire motor, 3 speeds control, there are 42-liter square water tank, 49-liter round water tank, 12-liter square box three kinds of water tanks for optional, the spray can reach 2-10 meters.



The DC type is designed with a BLDC fully sealed motor, 4 speed control with a 42-liter square water tank, and the spray can reach 8 meters. which is more energy-efficient and has a larger spray volume than AC type.
