MFJ-M26/30
Mingletec
Product Features:
1. The industrial fan by using permanent magnet brushless DC motor.
2. Fully sealed motor. Dustproof, smokeproof, oilproof, suitable for use in harsh environments.
3. Overload protection, no burnt motor, longer service life.
4. 2mm Stamped Aluminum blade.
5. 4 Speeds adjustable.
6. Widely used in the general environment of the factory, workshops, warehouses, basements etc, for ventilation and improving the environment.
| Model | Size | Voltage (V/Hz) | Power (W) | Speed (RPM) | Capacity （L） | Air Volume (m³/h) | Weight (Kg) |
| MFJ-M26 | 26 inch | 220~240/50~60 | 100~175 | 700-1350 | 60 | 1300~6500 | 27.8 |
| MFJ-M30 | 30 inch | 220~240/50~60 | 100~210 | 700-1280 | 60 | 2200~11000 | 28.8 |

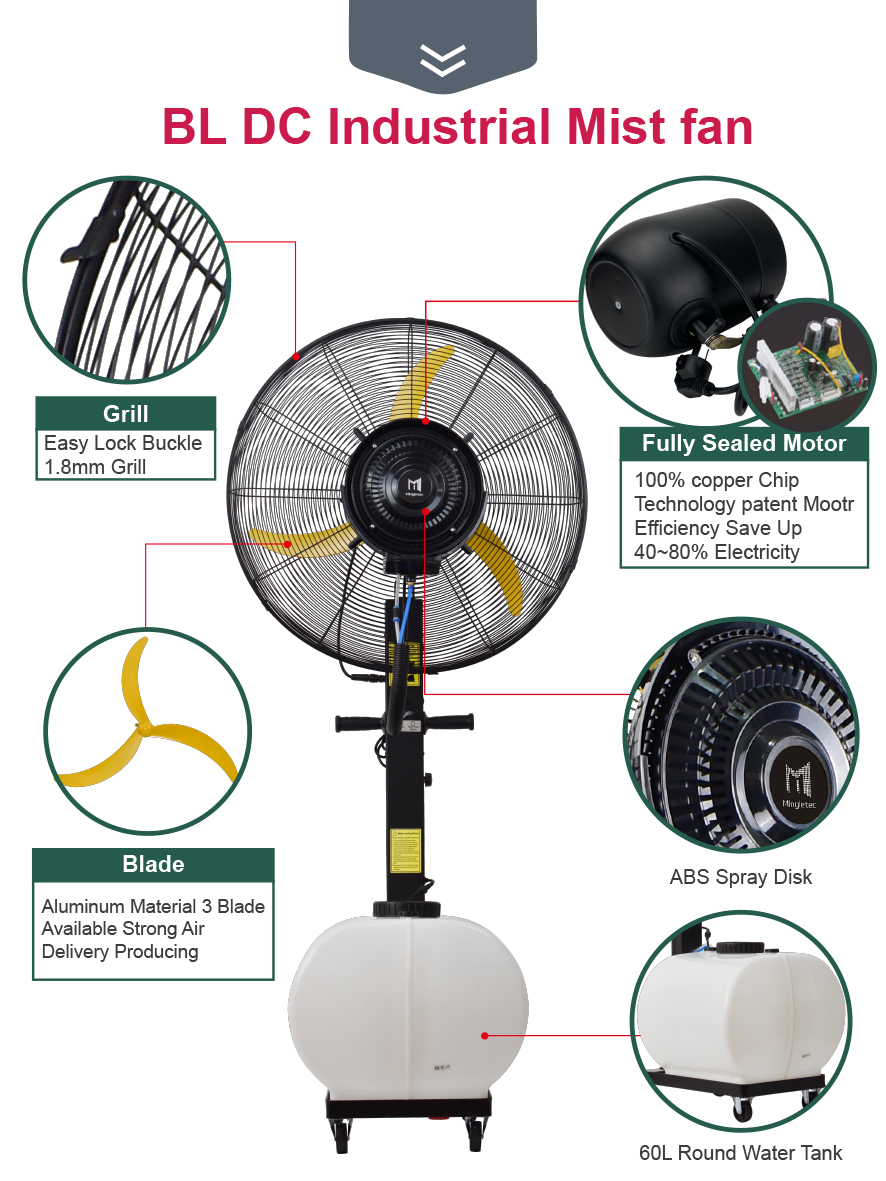

Motor
100% Copper Chip Technology Patent Motor Efficiency Save Up 50% Electricity
Blades
Aluminum Material 3 Blade Available Strong Air Delivery Producing
Grill
1.8mm, thicker and more dense, sturdy and durable, Easy Lock Buckle
ABS Spray Disk
Energy-saving and water-saving design anti-overflow can be reused
Spray Switch and Rod
Optional adjustable height
Water Tank
60 Liter Water Tank capacity
