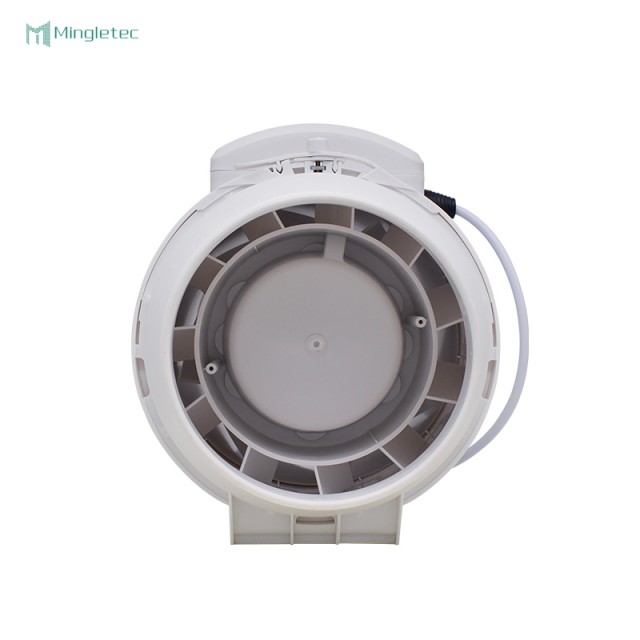

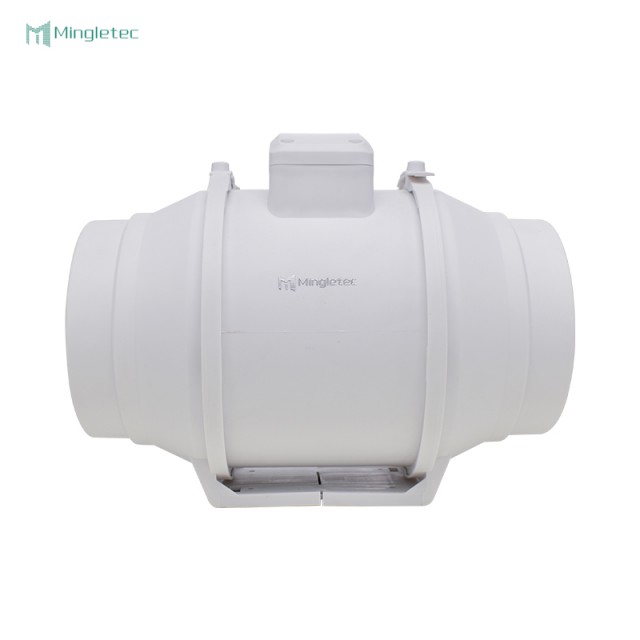

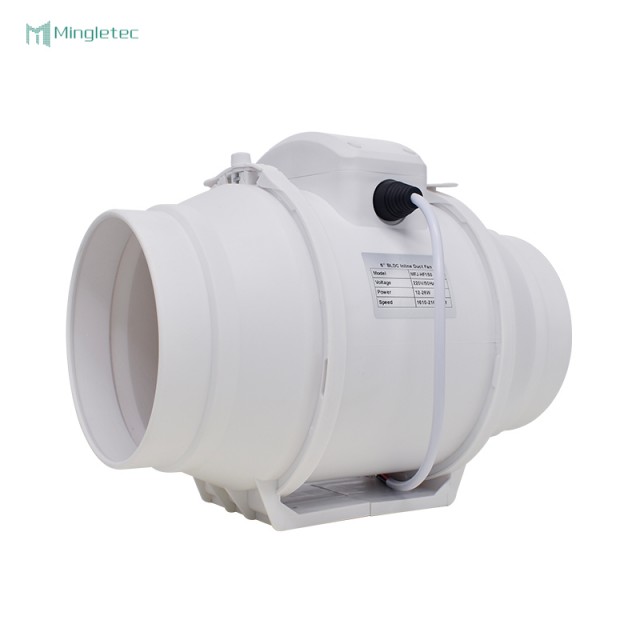

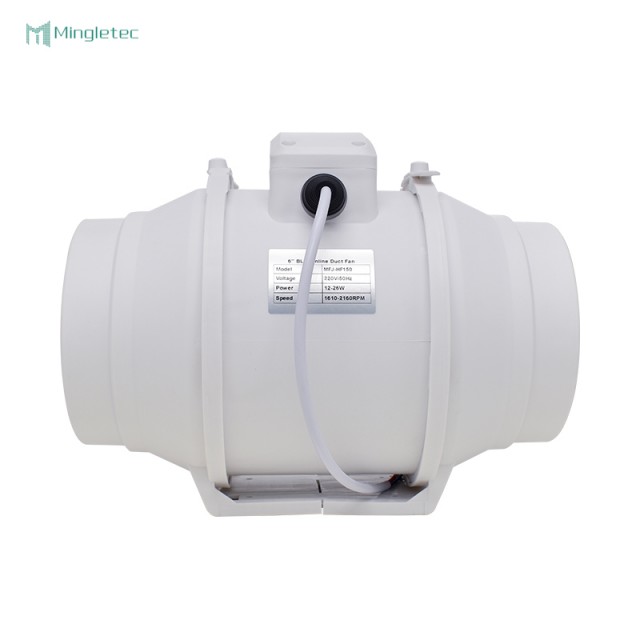

MFJ-HF100/150/200
Mingletec
| Model | Size | Voltage (V/Hz) | Power (W) | Speed (RPM) | Noise (dB) | Air Volume (m³/h) | Air Preasure (Pa) | Weight (Kg) |
| MFJ-HF100 | 4 | 220~240/50~60 | 11/22 | 2010-2610 | 36 | 220 | 150 | 1.4 |
| MFJ-HF150 | 6 | 220~240/50~60 | 11/26 | 1600/2230 | 38 | 540 | 300 | 1.8 |
| MFJ-HF200 | 8 | 220~240/50~60 | 16/53 | 1250/1930 | 43 | 900 | 380 | 1.9 |
Product Feature:
* IP44 protection level.
* Capacitive single-phase asynchronous motor with 50000 hours working life.
* Two speed or switch on the connection box.
* Operating temperature range: -20℃~60℃.

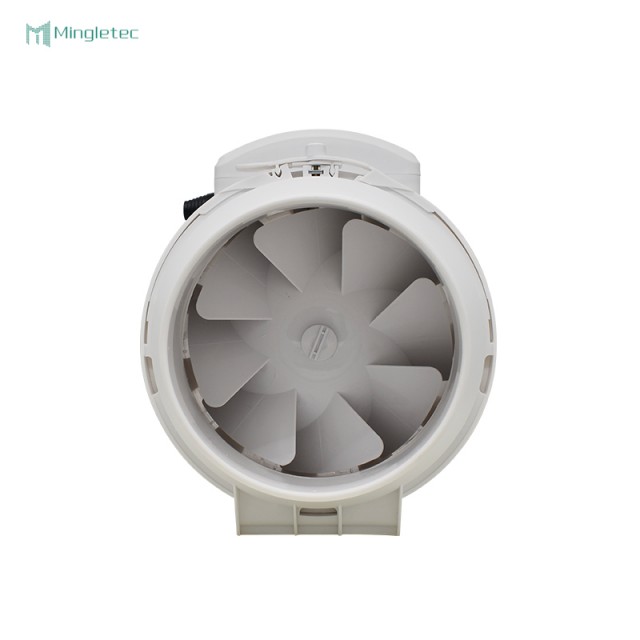

* Fan blade is designed according to the fluid dynamics principle to reach optimal airflow and air pressure.
* Perfect for homes, apartments, offices, public places, hotels, gyms and etc.
100% Copper Wire For Good Conductivity
Double Ball Bearing For Long Life-span
Fully Sealed Motor Housing TO Extend Life-Span
Lube oil for Working Stable
