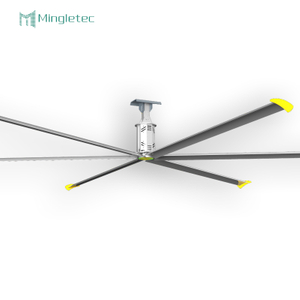

Industrial fans are commonly used in industrial settings, but not all environments are suitable for their installation. There are specific requirements that must be met for installation. Although different types of industrial fans have their installation needs, they all share basic requirements, which include:
The height of the installation site must be considered. If the height is too low, the ventilation and cooling effect will not be ideal, making it unsuitable for the installation of industrial fans. Generally, the height needs to be at least 4 meters above the ground.
When installing industrial fans, there should be a suitable distance from obstacles to ensure proper installation and safety during use. The distance between asynchronous motors and permanent magnet synchronous motors and obstacles may vary depending on the installation scheme.
The bearing capacity of the roof must be taken into account when installing industrial fans. Since a large industrial fan weighs more than 100 kilograms, it is essential to ensure that the roof can support its weight. However, steel structures, brick-and-concrete structures, brick structures, etc., can usually support industrial fans.
When installing industrial ceiling fans, specific specifications must be considered for the installation height. Different installation heights will result in different coverage areas of industrial fans. The specifications include:
Under standard conditions, when the fan blade is 6-8 meters above the ground, the wind pressure is high, and the wind speed is even.
When the blade is between 9-13 meters above the ground, the wind pressure is slightly reduced, but the coverage area increases by 20-30%, and the wind speed is slightly reduced.
When the fan blade is more than 14 meters above the horizontal, the wind pressure, wind speed, coverage area, and other indicators gradually weaken.
Therefore, when installing large industrial fans, the blade's horizontal plane should be maintained at 6-8 meters above the ground. If the height is above 9-13 meters, the fan density can be appropriately reduced, and the blade's horizontal plane should not exceed 14 meters.
Industrial fans have a significant impact on cooling workshops and are often used for ventilation and cooling. The number of industrial fans required in a workshop primarily depends on the workshop's size.
Under normal circumstances, the distance between two industrial fans should be between 15-25 meters, which is a reasonable distance. In addition, the installation density of industrial fans is affected by factors such as fan installation height, the distance between fan blades and ceiling, and ground structure and structure, which to be analyzed according to the actual situation.
