MTB-300/380/480/580/680/740/800/900/1060/1220/1380/1530/1750
Mingletec
Model | Voltage (V) | Power (W) | Noise (dB) | Speed (RPM) | Air Volume (m³/h) | Blade Size (mm) |
MTB-300 | 220 | 100 | 55 | 1400 | 1000 | 220 |
MTB-380 | 380/220 | 200 | 60 | 1400 | 1800 | 300 |
MTB-480 | 380/220 | 200 | 65 | 1400 | 4300 | 380 |
MTB-580 | 380/220 | 250 | 70 | 1400 | 5600 | 480 |
MTB-680 | 380/220 | 250 | 75 | 1400 | 8500 | 580 |
MTB-740 | 380/220 | 300 | 75 | 1400 | 10000 | 680 |
MTB-800 | 380/220 | 370 | 75 | 1400 | 18000 | 740 |
MTB-900 | 380/220 | 370 | 55 | 620 | 27000 | 750 |
MTB-1060 | 380/220 | 550 | 60 | 580 | 32000 | 950 |
MTB-1220 | 380/220 | 750 | 63 | 520 | 37000 | 1110 |
MTB-1380 | 380/220 | 1100 | 65 | 480 | 44500 | 1270 |
MTB-1530 | 380/220 | 1500 | 70 | 350 | 57000 | 1420 |
MTB-1750 | 380/220 | 1800 | 70 | 350 | 68000 | 1640 |
1. Low noise, Big airflow, power saving, and easy to install.

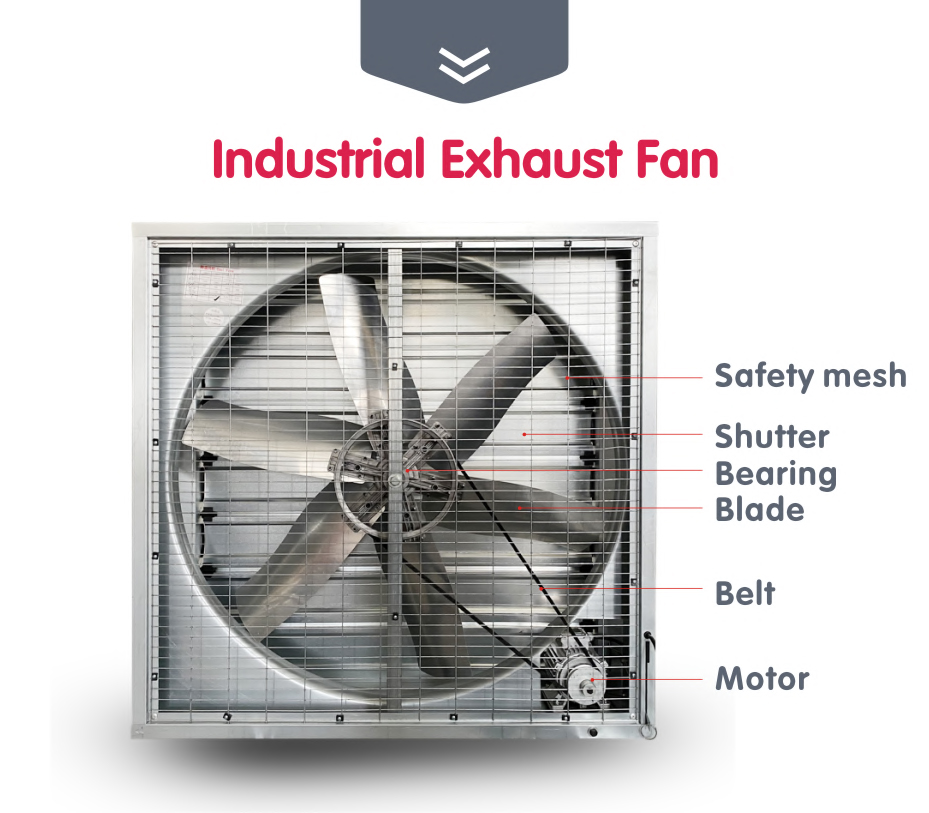

2. 6 wing galvanized steel blade.

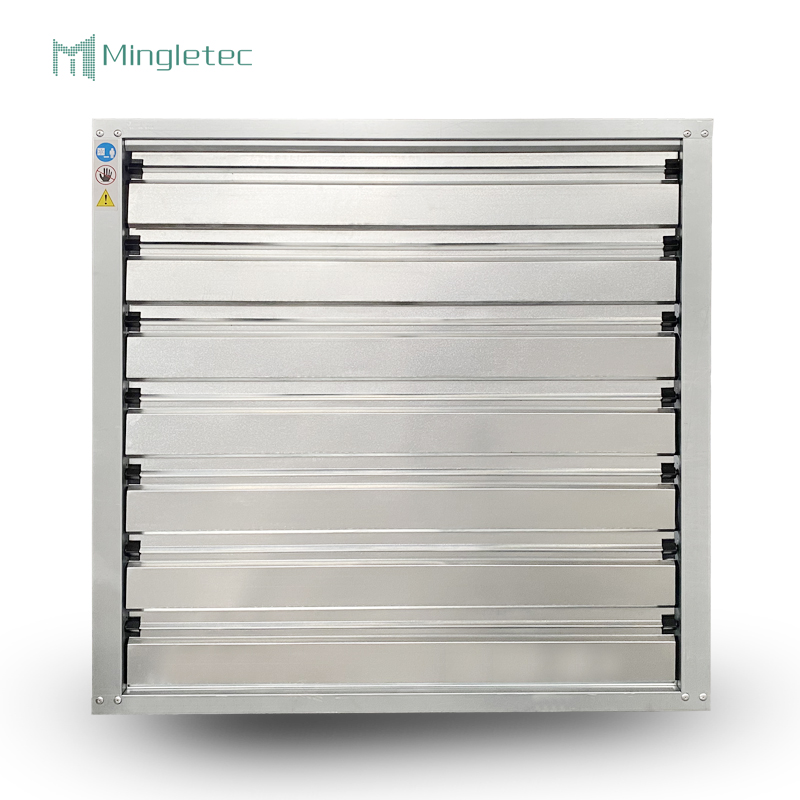

3. Fan shutters automatically open or close following the fan starts or stops running, which achieves dust-proof, appearance clean.
4. The grill type has the same performance as the shutter type, more simple.
5.Suitable for ventilation in warehouses, animal farms, factories and more.
Motor from famous brands in China and Siemens can be accessible with the voltage and frequency of motor provided customized services. Chinese motor OEM by special design for fan, the first put in the phase lack protection device which would power off when a shortage of electricity. Motor protection grade IP55, insulation class F grade.
Adopts punching high quality aluminum, and it has the advantages of light weight, beautiful and dignified in appearance, high-class, and antirust.
Adopts high quality galvanized steel, and it has the advantages of automatically control opening and closing
Model | Voltage (V) | Power (W) | Noise (dB) | Speed (RPM) | Air Volume (m³/h) | Blade Size (mm) |
MTB-300 | 220 | 100 | 55 | 1400 | 1000 | 220 |
MTB-380 | 380/220 | 200 | 60 | 1400 | 1800 | 300 |
MTB-480 | 380/220 | 200 | 65 | 1400 | 4300 | 380 |
MTB-580 | 380/220 | 250 | 70 | 1400 | 5600 | 480 |
MTB-680 | 380/220 | 250 | 75 | 1400 | 8500 | 580 |
MTB-740 | 380/220 | 300 | 75 | 1400 | 10000 | 680 |
MTB-800 | 380/220 | 370 | 75 | 1400 | 18000 | 740 |
MTB-900 | 380/220 | 370 | 55 | 620 | 27000 | 750 |
MTB-1060 | 380/220 | 550 | 60 | 580 | 32000 | 950 |
MTB-1220 | 380/220 | 750 | 63 | 520 | 37000 | 1110 |
MTB-1380 | 380/220 | 1100 | 65 | 480 | 44500 | 1270 |
MTB-1530 | 380/220 | 1500 | 70 | 350 | 57000 | 1420 |
MTB-1750 | 380/220 | 1800 | 70 | 350 | 68000 | 1640 |
1. Low noise, Big airflow, power saving, and easy to install.
2. 6 wing galvanized steel blade.
3. Fan shutters automatically open or close following the fan starts or stops running, which achieves dust-proof, appearance clean.
4. The grill type has the same performance as the shutter type, more simple.
5.Suitable for ventilation in warehouses, animal farms, factories and more.
Motor from famous brands in China and Siemens can be accessible with the voltage and frequency of motor provided customized services. Chinese motor OEM by special design for fan, the first put in the phase lack protection device which would power off when a shortage of electricity. Motor protection grade IP55, insulation class F grade.
Adopts punching high quality aluminum, and it has the advantages of light weight, beautiful and dignified in appearance, high-class, and antirust.
Adopts high quality galvanized steel, and it has the advantages of automatically control opening and closing
